  • 부력식 정수위볼밸브
list
  • 제품사진
  • ㆍSize : 15A~80A
    ㆍ규격 : KS B 2308
    ㆍ압력. : 0.98MPa
    ㆍType : Screw
    ㆍMaterial : C3771
  •

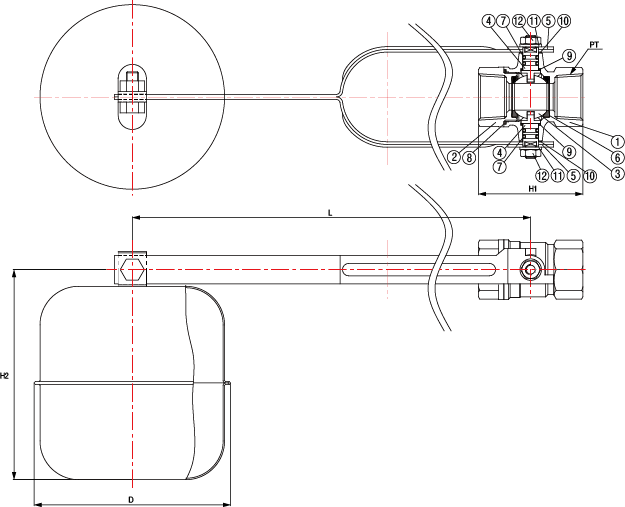

  • 제품도면
  • spec01
  • 제품사양
  • DIMENSIONS

    SIZE

    PT

    H1

    H2

    L

    D

    15A

    1/2"

    51.2

    119.5

    220

    105

    20A

    3/4"

    57.2

    119.5

    310

    105

    25A

     1"

    72.8

    148

    450

    125

    32A

    1 1/4"

    83.6

    170

    580

    140

    40A

    1 1/2"

    94

    186

    700

    170

    50A

    1"

    107

    186

    800

    200

    65A

    2 1/2"

    128.7

    235

    950

    200

    80A

    3"

    145.6

    287

    1020

    230
    PART NAME

    NO

    PART NAME

    MATERIAL SPEC

    1

    		 BODY C3771

    2

    		 CAP C3771

    3

    		 BALL C3771 / C3604

    4

    		 STEM C3604

    5

    		 HANDLE SB34

    6

    		 SEAT RING PTFE

    7

    		 O-RING NBR

    8

    		 SEAL RING NBR

    9

    		 BACK PACKING PTFE

    10

    HANDLE PACKING

    		 PTFE

    11

    		 SP/WASHER SWRM8

    12

    		 NUT SWRM8
