청동밸브
|

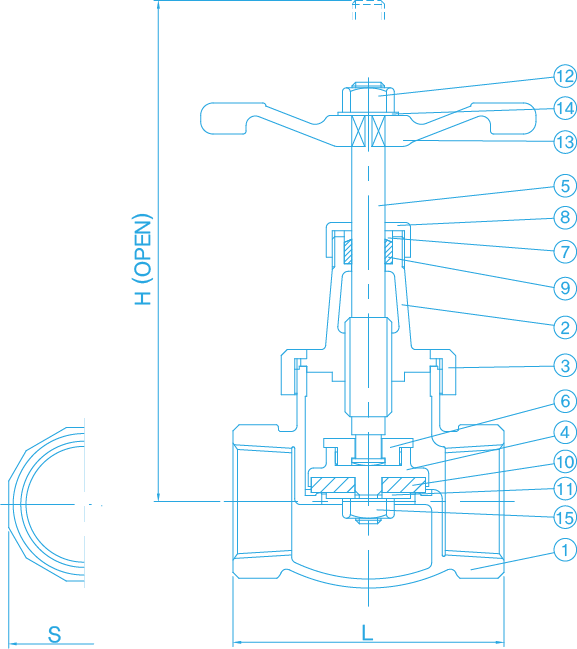

SIZE |
15A |
20A |
25A |
32A |
40A |
50A |
|---|---|---|---|---|---|---|
|
H |
112 |
116 |
142 |
152 |
162 |
198 |
|
L |
60 |
70 |
80 |
100 |
100 |
120 |
|
S |
29 |
35 |
44 |
50 |
56 |
71 |
|
NO |
PART NAME |
MATERIAL SPEC |
Q'TY |
REMARK |
||
|---|---|---|---|---|---|---|
|
1 |
BODY |
CAC406 |
1 |
|
||
|
2 |
BONNET |
C3771/ CAC406 |
1 |
|
||
|
3 |
UNION NUT |
CAC406 |
1 |
|
||
|
4 |
DISC |
C3771/ CAC406 |
1 |
|
||
|
5 |
STEM |
C3604 |
1 |
|
||
|
6 |
DISC FIXED NUT |
C3604 |
1 |
|
||
|
7 |
PACKING RING |
C3604 |
1 |
|
||
|
8 |
GRAND NUT |
C3604 |
1 |
|
||
|
9 |
PACKING |
ASBESTOS |
1 |
|
||
|
10 |
DISC SEAT |
PTFE |
1 |
|
||
|
11 |
DISC PLATE |
C3604 |
1 |
|
||
|
12 |
NUT(HANDLE) |
C3604 |
1 |
|
||
|
13 |
HANDHAND WHEEL |
FC20 |
1 |
|
||
|
14 |
NAME PLATE |
A1100P |
1 |
|
||
|
15 |
NUT(DISC) |
C3604 |
1 |
|
||
