이전 용접형볼밸브 다음
  • 배관용 볼밸브-알밸브
list
  • 제품사진
  • ㆍSize : 50A~600A
    ㆍ규격 :
    ㆍ압력. : 20㎏f/㎠
    ㆍType : Welding
    ㆍMaterial : A105
  •

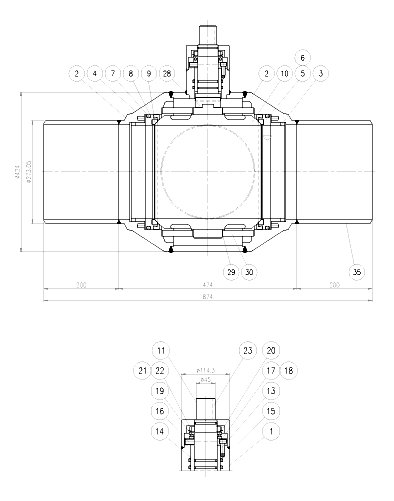

  • 제품도면
  • spec01
  • 제품사양

  • PART NAME

    No Part Name Material Spec Q'ty Remark
    ASS'Y DWG.(SF-250A) 1SET
    1 Main Body A105 1
    2 Body A105 2
    3 Sleeve SPPS38 2
    4 Seat Spring A105 24
    5 Seat Ring A105 2
    6 Seat Cap A105 2
    7 Seat O-Ring VITION 2 8.4
    8 Pad VITION 2
    9 Seat PTFE+C25% 2
    10 Ball A182-F60 1
    11 Ball Spindle A182-F316 1
    12 Back Packing PTFE 2
    13 Grand A105 1
    14 O-Ring(Inside) VITION 4 P49
    15 O-Ring(Outside) VITION 2 P70
    16 Stopper Pin SK5M 1 12X100L
    17 Stop Key SM45C 2 HRC 40~45
    18 Hex, Socker Bolt PUR. 4 M0X25L
    19 Thrust Bearing PUR. 1 #51111
    20 Belleville Spring S70CM 2 57X97
    21 Lock Washer PUR. 1 AW11
    22 Lock Nut PUR. 1 AN11
    23 SQ, Key PUR. 2 16X10X50L
    28 Coupling SM45C 1 HRC40~45
    29 DU Bush PUR. 2 MB7015-90FDU
    30 Bracket SS41 2
    35 END PIPE(STUB) API 5L Gr.X42 2 STD
